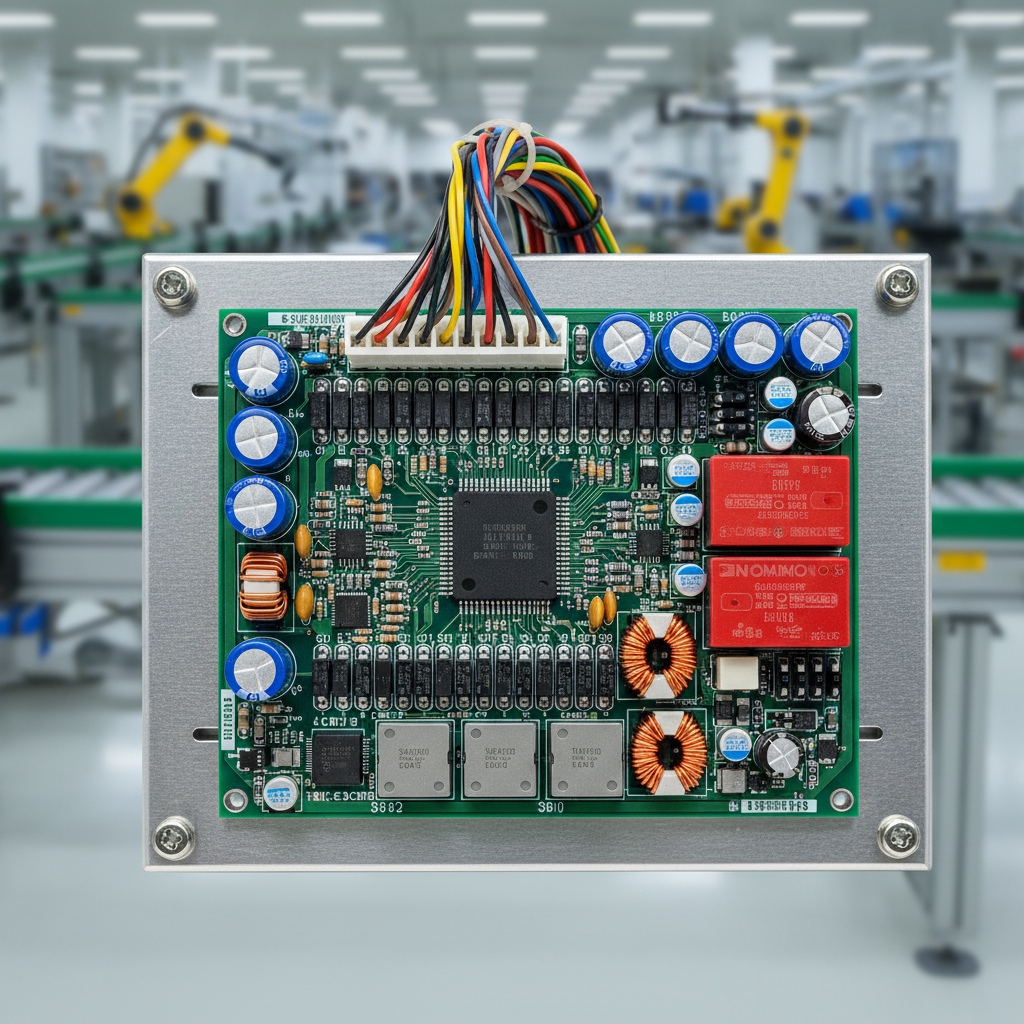

Industrial PCB Assembly Module — FR4 Multi-Layer, SMT Process
SKU: TN-PCB-4L-SMT-001
4.8(234 reviews)· Make to Order
Volume Pricing Tiers
| Quantity | Unit Price |
|---|---|
| 500 – 999 pcs | $4.80 |
| 1,000 – 4,999 pcs | $3.60 |
| 5,000 – 9,999 pcs | $2.90 |
| 10,000+ pcs | $2.40 |
Min. order: 500 pcs
Estimated Price
$4.80 / pcs
Lead Time
15–25 business days
Shipping
Sea / Air / Express
Accepted Payment Methods
T/T (30% deposit, 70% before shipment)L/C at sightPayPal (orders < $5,000)Western Union
About the Supplier
Shenzhen TechMfg Co., Ltd.
Verified★ Gold Supplier🇨🇳 China · PCB Assembly, PCBA Prototype, SMT Service
4.9 (1,840 reviews)
15yr
In Business
98%
Response Rate
< 2 hrs
Response Time
2,400
Products
ISO 9001:2015CERoHSULSGS

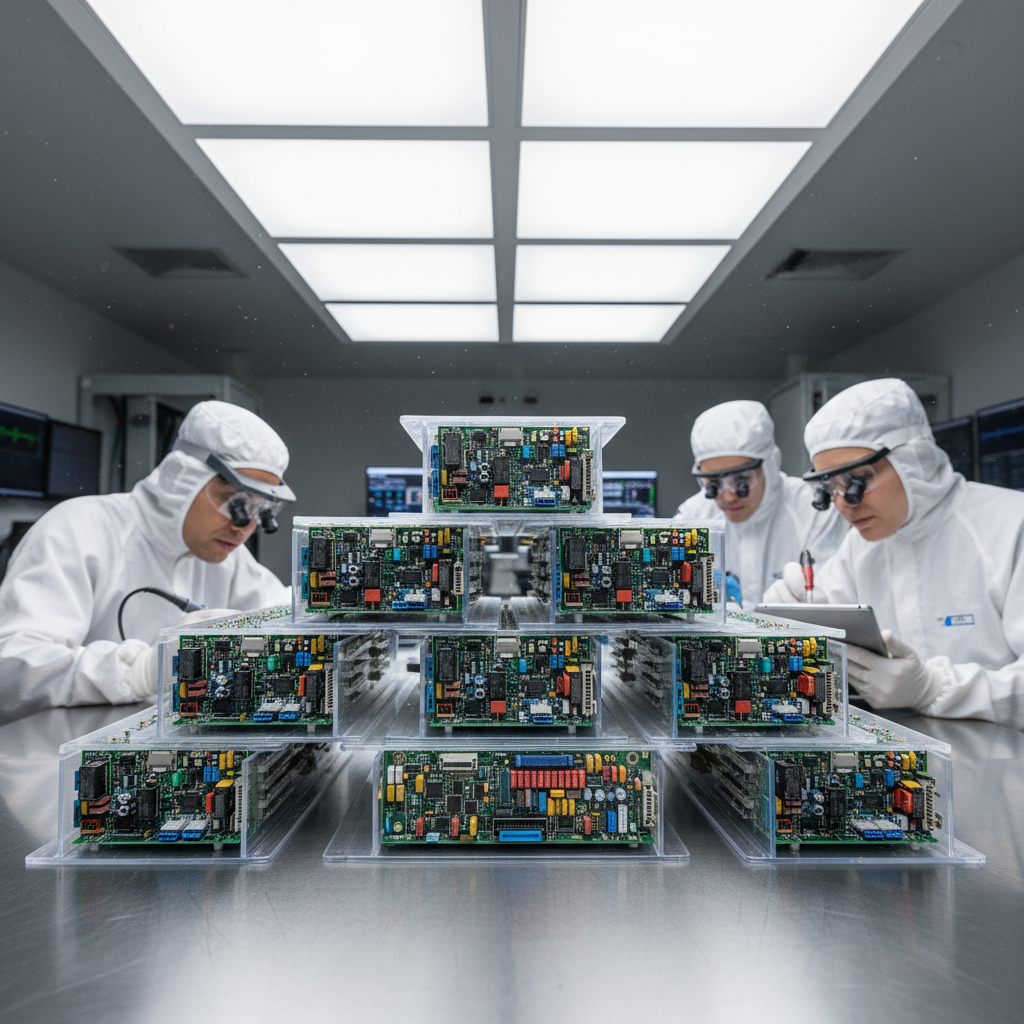

High-quality FR4 multi-layer PCB assembly manufactured using Surface Mount Technology (SMT). Suitable for industrial automation, consumer electronics, medical devices, and telecommunications equipment. Each board undergoes 100% electrical testing, AOI inspection, and X-ray inspection for hidden solder joints.
| Material | FR4 Tg170 |
| Layers | 4-layer (customizable to 20L) |
| Board Thickness | 1.6mm ± 0.1mm |
| Copper Weight | 1oz / 2oz (outer), 0.5oz (inner) |
| Surface Finish | ENIG, HASL, OSP |
| Min Trace Width | 0.1mm / 4mil |
| Solder Mask | Green, Blue, Red, Black, White |
| Max Board Size | 610mm × 610mm |
| Operating Temp | -40°C to +85°C |
| Certifications | ISO 9001:2015, CE, RoHS, UL |
